Version 0.4.0¶

Release date: March 31, 2026

This release introduces major architectural changes to improve performance, flexibility, and usability. Key changes include the introduction of "Annotation" files and an upgraded dashboard.

Highlights¶

Annotations¶

Analysis results like events and steps are now stored in a separate file from raw data, allowing for more flexible data management and easier sharing of analysis results without raw data. Consider this example project:

my-project/
 └── measurement.dat

Then this .dat data file, can be opened using poreflow.File:

1
2
3
4

import poreflow as pf

with pf.File("measurement.dat") as f: # (1)!
    f.find_events() # (2)!

1. A .fast5 and annotation file is created automatically here.
2. Analysis results, such as events, are automatically stored in the annotations file.

Processing results are stored in a separate file with the annot.fast5 extension.

my-project/
 ├── measurement.dat
 ├── measurement.fast5
 └── measurement.annot.fast5  <-- Analysis results (read-write)

This new system is fully backward compatible with poreFlow 0.3.X, as annotation opening is managed under the hood by poreflow.File. As a result, no changes in processing scripts are needed. Note that the annotations system has many advantages for most users, to learn more, check out the Annotations feature page.

Filtering improvements¶

Changes have been made to the downsampling and filtering workflows. poreFlow DataFrames can be downsampled and filtered at any time using their methods:

1
2
3
4
5
6
7
8

with pf.File("utube_measurement.dat") as f:
    raw = f.get_raw()

raw = raw.downsample(5000).apply_filter(1000) # (1)!

print(f"Original sample rate: {raw.sfreq_original} Hz")
print(f"Downsampled to:       {raw.sfreq} Hz, ")
print(f"Filtered to:          {raw.filter_cutoff} Hz, ")

1. First downsample to 5 kHz using decimation, then filter with a 4^th-order Bessel filter

Original sample rate: 50000.0 Hz
Downsampled to:       5000.0 Hz,
Filtered to:          1000 Hz,

This new system is not backward compatible with poreFlow 0.3.X, so minor changes in processing scripts are needed. To learn more about filtering and downsampling, check out the Filtering feature page.

Dashboard Improvements¶

The dashboard has seen UI refinements and better handling of configuration files.

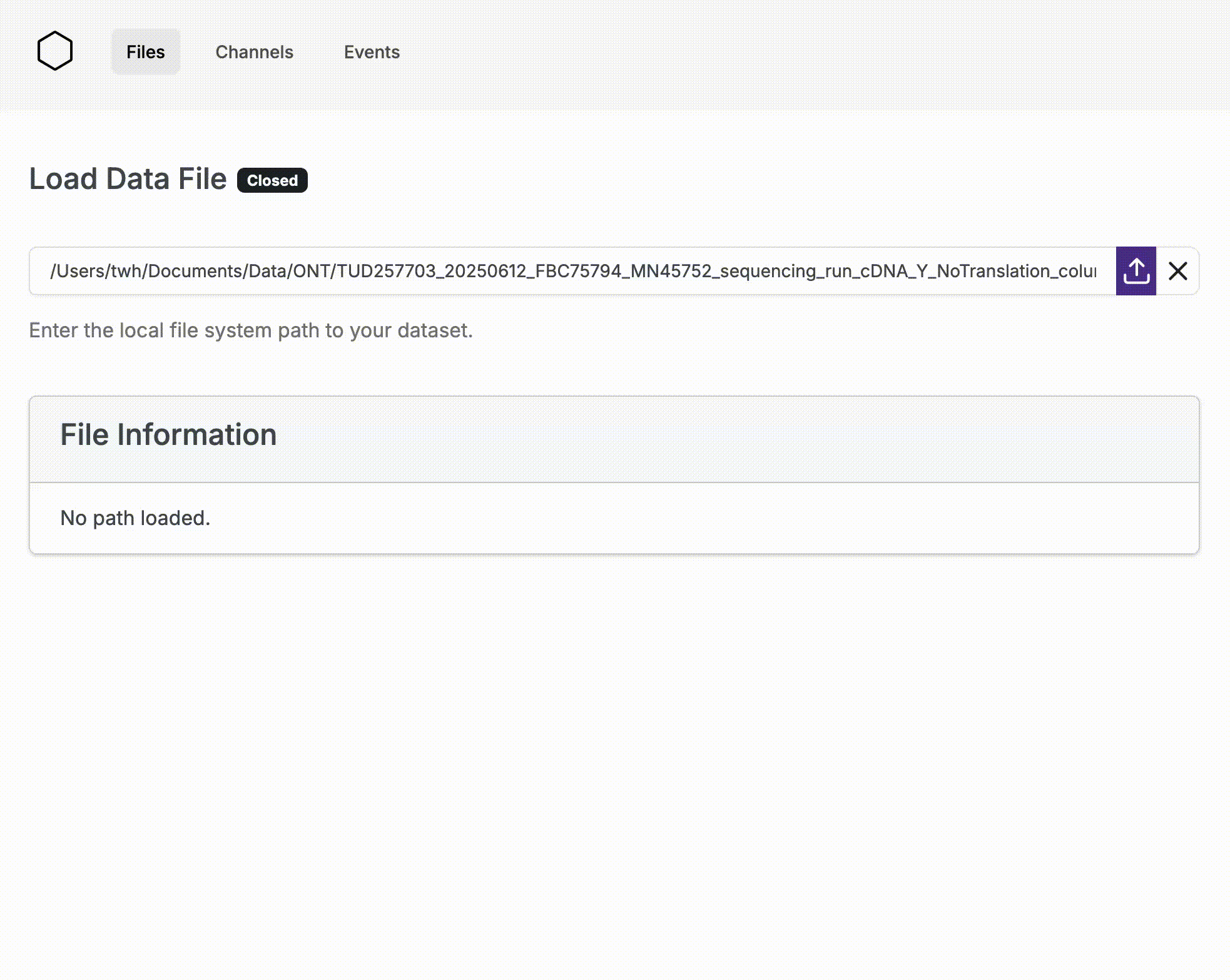

Introducing configurations¶

To keep all the configuration settings in one place, we have created a poreflow.toml file, which stores all the settings for the poreFlow Dashboard. Besides the dashboard, this TOML is also useful in Python scripts for building central configurations scheme.

After loading a file, the Dashboard now shows richer information on the dataset, including the sample rate, number of events, and number of steps.

When loading a file, poreFlow searches the folder of the data file for a configuration file called poreflow.toml and loads this configuration. This configuration for the session is shown below the file input.

The "Default" badge indicates that no poreflow.toml in the same folder as the loaded data file. If a config file was found, this will show "Configuration from folder".

The configuration can be edited, and settings are used in the rest of the dashboard. Each page also has a settings button () which opens a settings window. This window shows the sections of the configuration that are useful for that page.

For an example of a default poreflow.toml, check out the Configurations feature page.

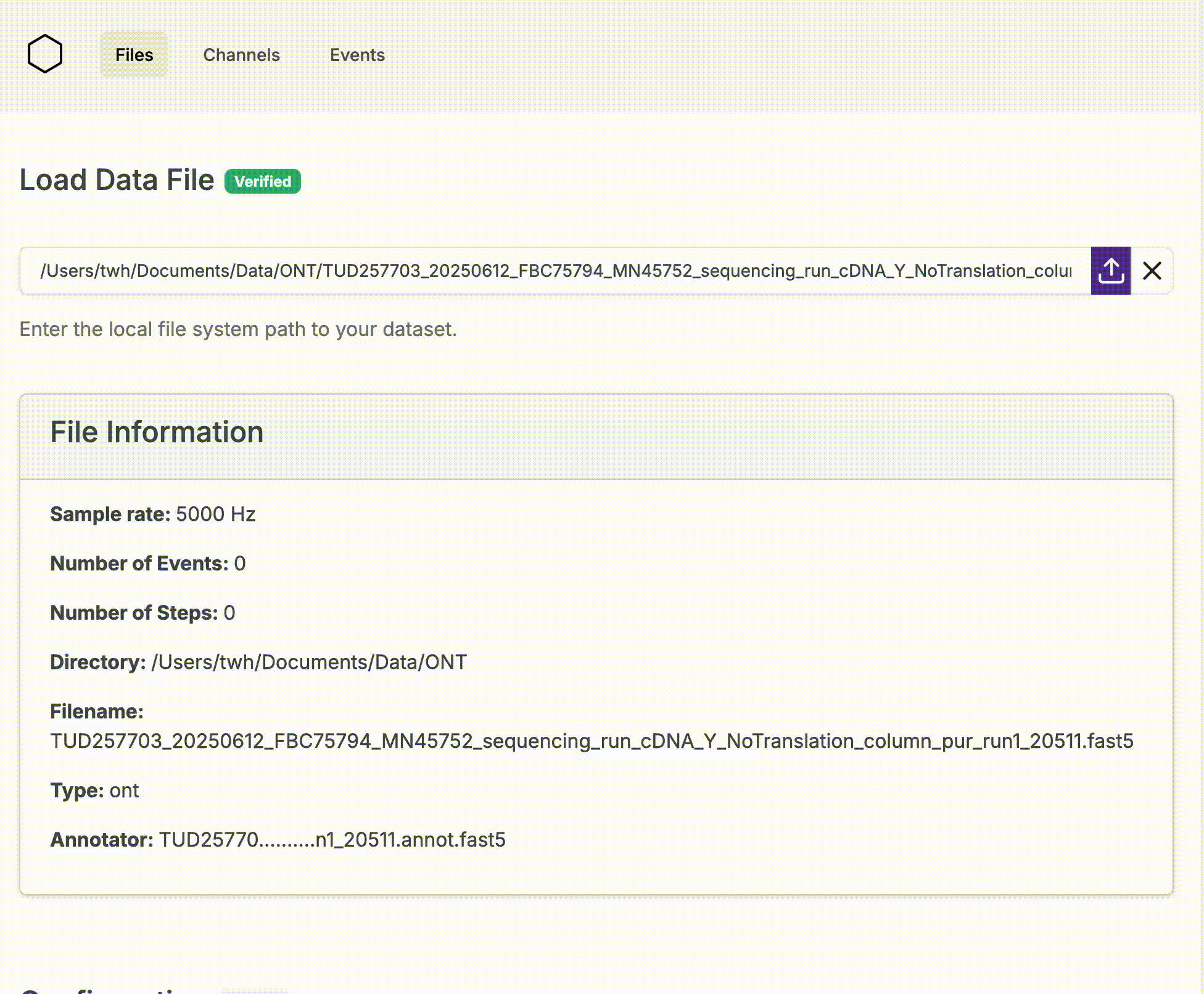

Saving a configuration¶

By clicking the save button (), the configuration is saved to disk next to the file:

my-project/
 ├── measurement.fast5
 ├── measurement.annot.fast5
 └── poreflow.toml           <--- Saved here

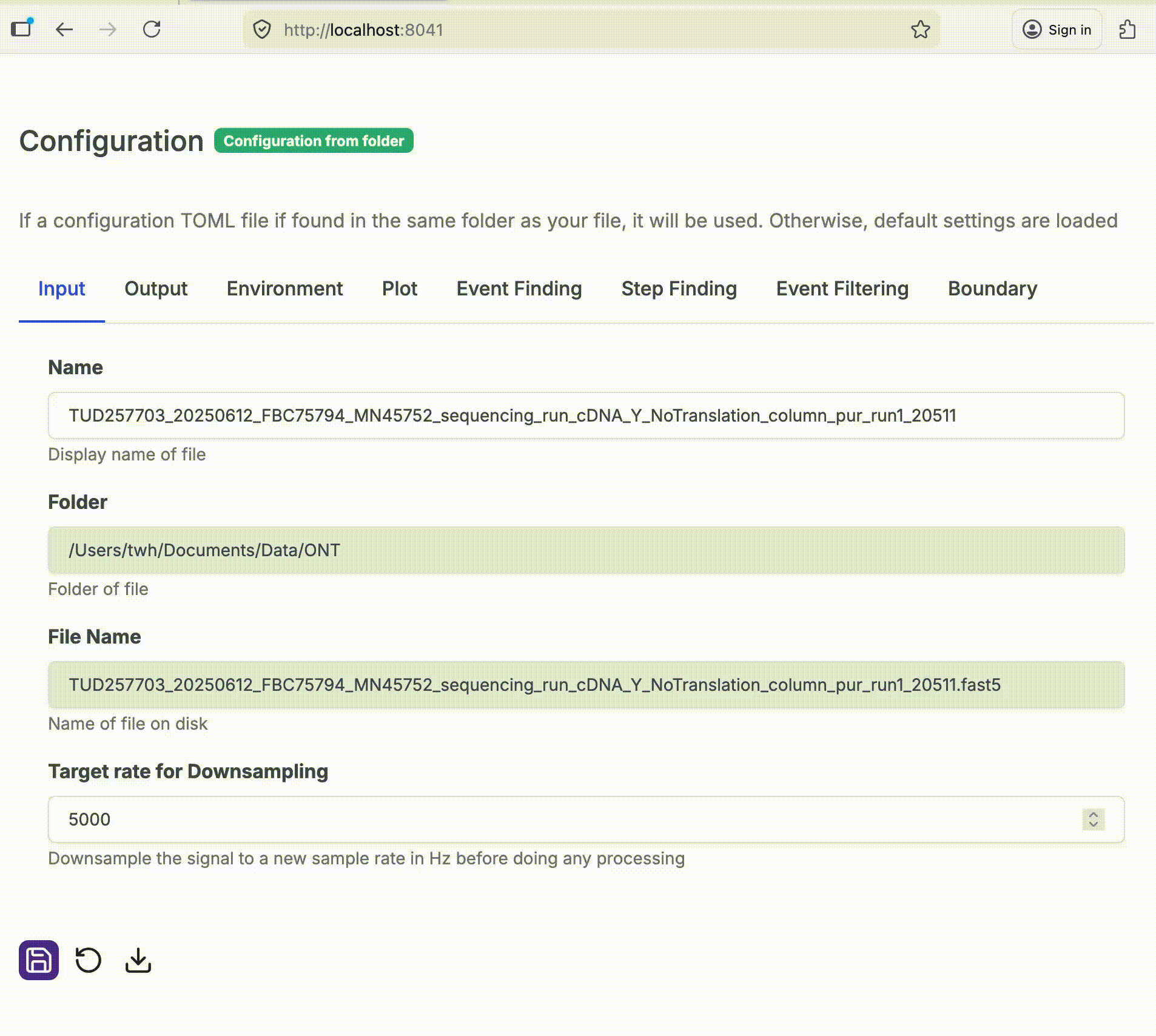

Downloading a configuration¶

A configuration can also be saved directly to the downloads folder using the download button ().

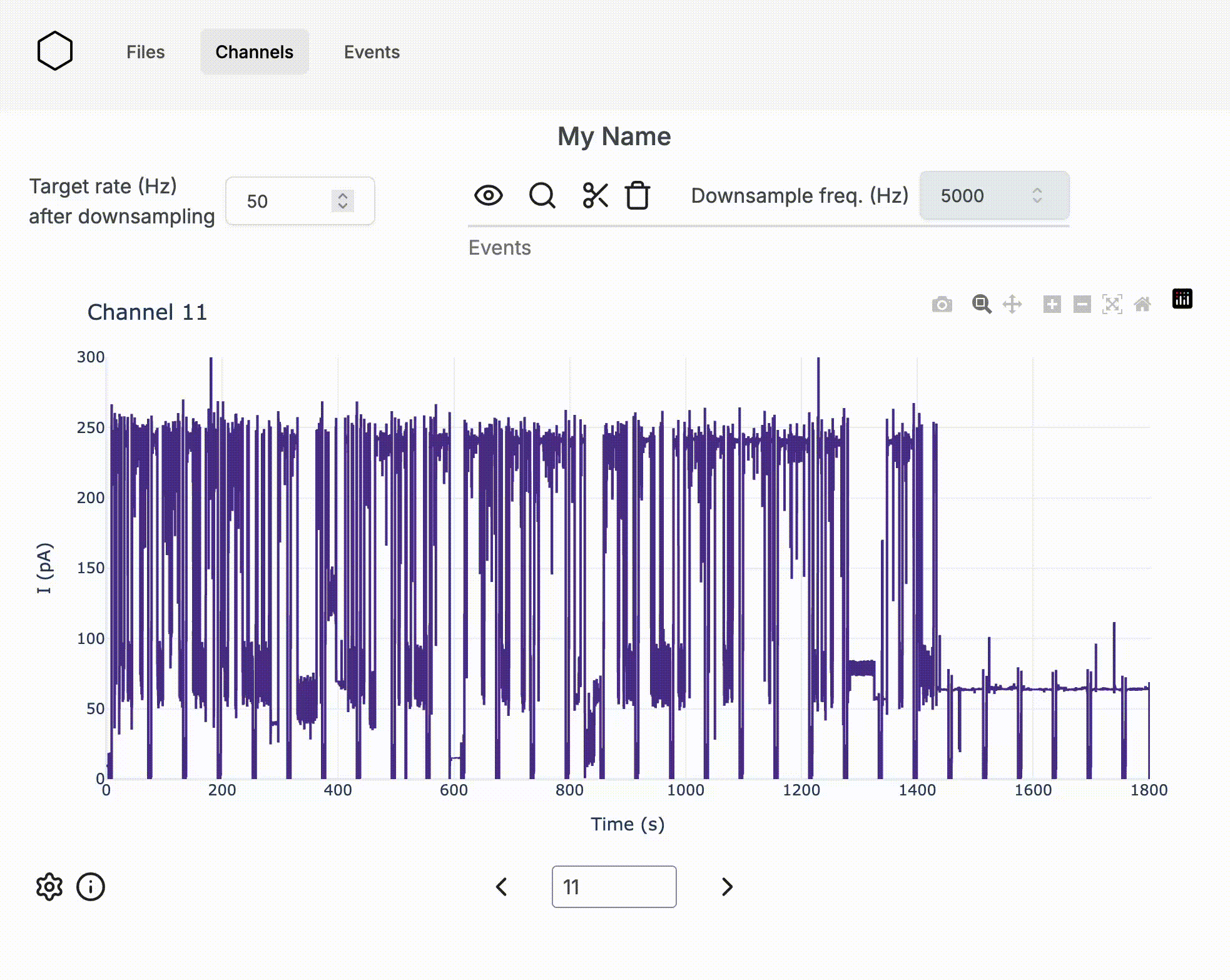

Event finding¶

Events can now be detected directly in poreFlow Dashboard. When viewing a channel on the "Channels" page click / to show/hide events. Events are shown in grey by default if available.

To find events, click , which starts the events finder using the configuration in the "Event Detection" section of the configuration.

To remove events from the current channel whilst preserving other events, click . To remove all events, click .

Migration Guide¶

No migration is needed for the annotation system. However, changes may be needed in processing scripts due to changes in the filtering/downsampling methods. This mainly concerns old scripts with downsampling in poreflow.File.get_raw() or poreflow.File.get_event(), for example:

1
2
3
4

with pf.File("utube_measurement.dat") as f:
    raw = f.get_raw(downsample=5000)

raw = raw.downsample(5000)

Change such uses to the following:

1
2

with pf.File("utube_measurement.dat") as f:
    raw = f.get_raw().downsample(5000)

Changelog¶

Architecture & Core Changes¶

• Separated annotations into their own file for better data management
• Refactored File class into DataFile (raw data) and File (with annotations)
• Added pointer system for efficient data access in DataFile
• Improved parallel processing for event and step detection leveraging annotation system and pointers
• Improved downsampling and filtering API
• Added support for alternative annotation paths
• Event boundary trimming is now supports removing a different amount of time before and after detected events
• Event boundary trim now takes trim sizes in milliseconds rather than samples

Dashboard & UI Improvements¶

• Refactored settings system with TOML configuration
• Added auto-scaling and better downsampling controls
• Improved UI for channel and event viewers
• Enhanced error handling and user feedback
• Added validation for configuration settings
• Improved layout and button styles

Performance & Code Quality¶

• Optimized multiprocessing for different platforms (Windows/Linux)
• Removed need for file locking and I/O handling
• Enhanced downsampling with better handling of integer columns
• Added better exception handling for event detection
• Cleaned up and refactored tests for CI/CD

Bug Fixes¶

• Fixed bug in event detection with start_idx handling
• Fixed issues with channel numbering in open state fit datasets
• Fixed downsampling issues with integer columns
• Fixed issue with removal of exclusion of samples with incorrect voltages from events in event detection
• Fixed configuration error handling in dashboard

New Features¶

• Added IV curve visualization and export functionality
• Implemented voltage segments for analysis
• Added support for manual IV curve processing
• Enhanced event duration filtering in detection
• Added display of processing statistics in plots
• Improved handling of unavailable data in poreflow.File

Documentation¶

• Updated AGENTS.md with new features and usage information
• Improved notebook examples

Authors¶

Thijn Hoekstra and Xiuqi Chen, see Authors.
